Actor基类，提供所有Actor的通用功能。 More...

#include <actor_base.h>

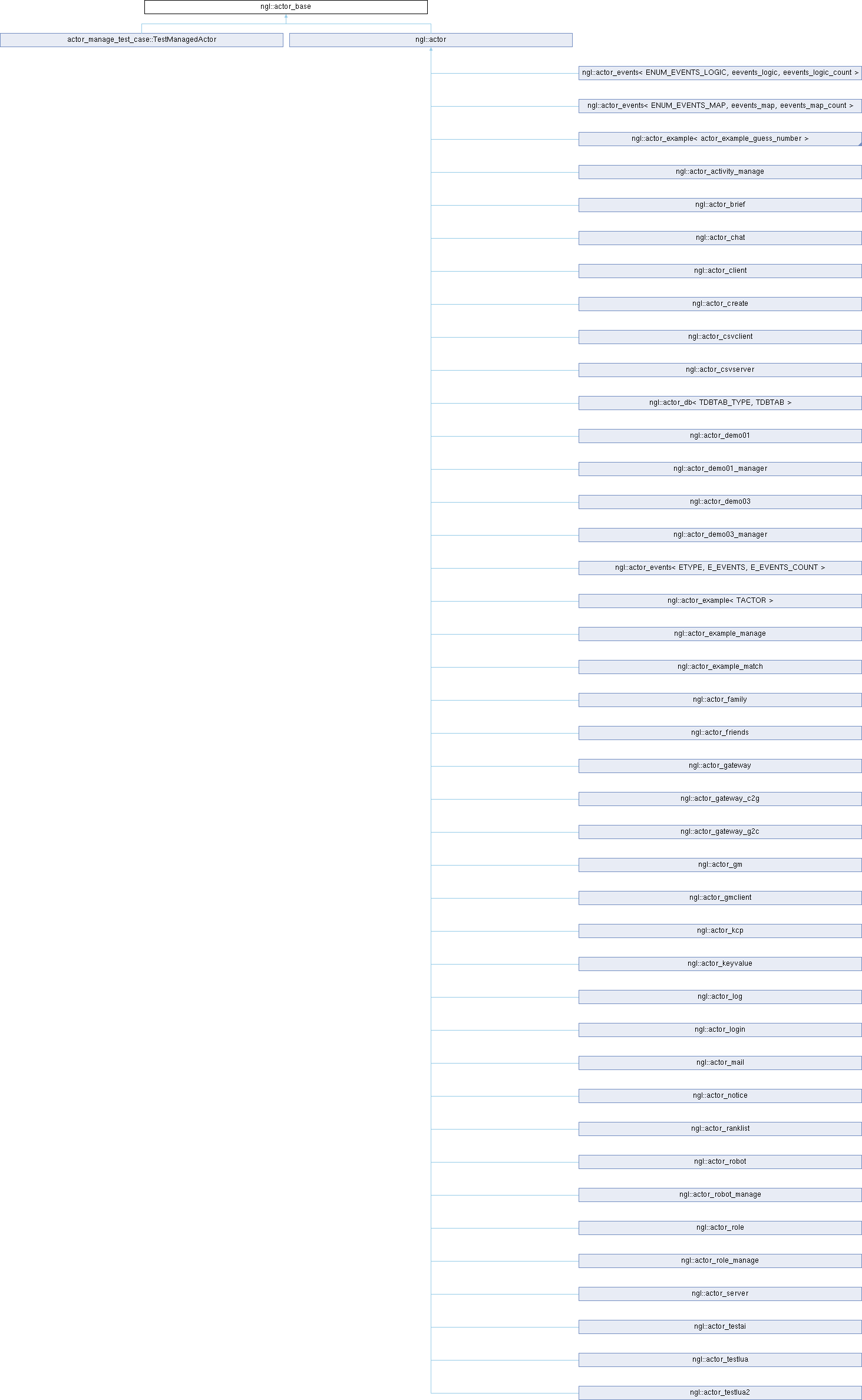

Inheritance diagram for ngl::actor_base:

Public Types
template<typename ... ARG>
using	create_fun = std::function<std::shared_ptr<actor_base>(i16_area, i32_actordataid, ARG...)>

Public Member Functions
	actor_base (const actorparmbase &aparm)
	Actor基类构造函数
nready &	ready ()
std::unique_ptr< nmanage_dbclient > &	manage_dbclient ()
void	set_db_component (ndb_component *acomponent)
void	db_component_init_data ()
void	init_db_component (bool acreate)
void	add_dbclient (ndbclient_base *adbclient, i64_actorid aid)
template<pbdb::ENUM_DB DBTYPE, typename TDBTAB, typename TACTOR>
bool	handle_db (const message< np_actordb_load_response< DBTYPE, TDBTAB > > &adata)
virtual void	init ()
virtual actor_stat	activity_stat ()=0
virtual void	set_activity_stat (actor_stat astat)=0
virtual bool	list_empty ()=0
virtual bool	pending_empty ()=0
virtual bool	high_empty ()=0
virtual bool	actor_handle (i32_threadid athreadid)=0
virtual bool	push (handle_pram &apram)=0
virtual void	handle_after (handle_pram &)
virtual void	loaddb_finish (pbdb::ENUM_DB atype, enum_dbstat astat)
virtual void	release ()=0
virtual void	erase_actor_before ()
virtual void	save ()
bool	is_single () const
const nguid &	guid () const
i64_actorid	id_guid () const
i32_actordataid	id () const
i16_area	area () const
ENUM_ACTOR	type () const
virtual void	erase_actor ()
	从actor_manage中注销并销毁此Actor
bool	nscript_using () const
bool	nscript_db_loadfinish () const
template<typename T>
bool	nscript_data_push (const char *asource, const T &adata, bool aedit)
template<typename T>
bool	nscript_data_del (int64_t adataid)
template<typename T>
bool	nscript_data_checkout (int64_t adataid, T &adata)
template<typename T>
bool	nscript_data_checkout (std::map< int64_t, T > &adata)
template<typename T>
bool	nscript_data_checkdel (int64_t adataid)
template<typename T>
bool	nscript_data_checkdel (std::vector< int64_t > &adeldata)
template<typename T>
bool	nscript_handle (const T &adata)
void	kcp_setindex (i32_serverid aserverid, pbnet::ENUM_KCP aenum, i16_port akcpindex)
std::optional< i16_port >	kcp_index (i32_serverid aserverid, pbnet::ENUM_KCP aenum)
std::optional< i16_port >	kcp_index (int16_t aservertid, int16_t atcount, pbnet::ENUM_KCP aenum)
bool	kcp_connect (i16_port auport, const std::string &aip, i16_port aprot, i64_actorid aactoridserver, std::string &akcpsession) const
int64_t	set_timer (const np_timerparm &aparm)
	为当前Actor设置定时器
bool	isbroadcast () const
void	set_broadcast (bool aisbroadcast)
template<typename T>
void	handle_print (const message< T > &adata) const

Static Public Member Functions
static void	erase_actor (const nguid &aguid)
static std::shared_ptr< pack >	jsonpack (const std::string &apbname, const std::string &ajson, i64_actorid aactorid, i64_actorid arequestactorid, bool ahead=false)
template<typename T>
static std::shared_ptr< pack >	net_pack (T &adata, i64_actorid aactorid, i64_actorid arequestactorid, bool ahead=false)
static bool	send_pack (i32_sessionid asession, std::shared_ptr< pack > &apack)
template<typename T>
static bool	send (i32_sessionid asession, const T &adata, i64_actorid aactorid, i64_actorid arequestactorid)
template<typename T>
static bool	send_server (i32_serverid aserverid, const T &adata, i64_actorid aactorid, i64_actorid arequestactorid)
template<typename T>
static bool	send_server (const std::set< i32_serverid > &aserverids, const T &adata, i64_actorid aactorid, i64_actorid arequestactorid)
static bool	send_server (i32_serverid aserverid, std::shared_ptr< pack > &apack)
static bool	kcp_sendpack (i64_actorid aactorid, std::shared_ptr< pack > &adata, i16_port auport=0)
static bool	kcp_sendpack (const std::set< i64_actorid > &aactorids, std::shared_ptr< pack > &adata, i16_port auport=0)
template<typename T>
static bool	kcp_send (i64_actorid aactorid, const T &adata, i16_port auport=0)
	向单个Actor发送KCP数据（actor_base模板实现）。
template<typename T>
static bool	kcp_send (const std::set< i64_actorid > &aactorids, const T &adata, i16_port auport=0)
	向一组Actor广播KCP数据（actor_base模板实现）。
static i64_actorid	actorclient_guid ()
template<typename T>
static void	send_client (const std::set< i64_actorid > &aids, const T &adata, ENET_PROTOCOL aprotocol=ENET_TCP)
template<typename T>
static void	send_client (i64_actorid aid, const T &adata, ENET_PROTOCOL aprotocol=ENET_TCP)
template<typename T>
static void	send_client (const std::vector< i64_actorid > &aids, const T &adata, ENET_PROTOCOL aprotocol=ENET_TCP)
template<typename T>
static void	send_client (const T &adata, ENET_PROTOCOL aprotocol=ENET_TCP)
template<typename T>
static void	send_clientbyarea (i16_area aarea, const T &adata, ENET_PROTOCOL aprotocol=ENET_TCP)
static void	send_actor (const nguid &aguid, const std::shared_ptr< pack > &adata)
	向指定Actor发送消息包
template<typename T, bool IS_SEND = true>
static void	send_actor (ENUM_ACTOR atype, const std::shared_ptr< T > &adata)
template<typename T, bool IS_SEND = true>
static void	send_actor (const nguid &aguid, const nguid &arequestguid, const std::shared_ptr< T > &adata)
template<typename T, bool IS_SEND = true>
static void	send_actor (const nguid &aguid, const nguid &arequestguid, const std::shared_ptr< T > &adata, const std::function< void()> &afailfun)
template<typename T, bool IS_SEND = true>
static void	send_actor (const std::set< i64_actorid > &asetguid, const nguid &arequestguid, const std::shared_ptr< T > &adata)
static void	start_broadcast ()
	启动全局广播定时器
template<typename TDerived>
static void	first_nregister (ENUM_ACTOR atype)
template<typename TACTOR, typename ... ARG>
static std::shared_ptr< actor_base >	create (i16_area aarea, i32_actordataid aid, ARG &&... args)
	actor工厂方法（编译期类型）
template<typename ... ARG>
static std::map< ENUM_ACTOR, create_fun< ARG... > > &	creators ()
template<ENUM_ACTOR EACTOR, typename TACTOR, typename ... ARG>
static void	cregister ()
template<typename ... ARG>
static std::shared_ptr< actor_base >	create (ENUM_ACTOR atype, i16_area aarea, i32_actordataid aid, ARG &&... args)
	actor工厂方法（运行时类型，查分桶表转调编译期create<TACTOR>）

Detailed Description

Actor基类，提供所有Actor的通用功能。

Actor是游戏服务器的基本执行单元，每个Actor代表一个独立的逻辑实体。该基类提供了以下核心功能：

身份标识和生命周期管理
数据库集成和持久化
消息处理和路由
脚本扩展支持
网络通信接口
定时器和事件处理

派生类需要实现纯虚函数来定义具体的行为。

Constructor & Destructor Documentation

◆ actor_base()

ngl::actor_base::actor_base ( const actorparmbase & aparm )

explicit

Actor基类构造函数

初始化GUID、DB管理器（可选）和脚本VM（可选），并注册DB加载就绪检查。

Parameters

aparm Actor构造参数

Member Function Documentation

◆ activity_stat()

virtual actor_stat ngl::actor_base::activity_stat ( )

pure virtual

Implemented in ngl::actor.

◆ actor_handle()

virtual bool ngl::actor_base::actor_handle ( i32_threadid athreadid )

pure virtual

Implemented in ngl::actor.

◆ create() [1/2]

template<typename ... ARG>

std::shared_ptr< actor_base > ngl::actor_base::create	(	ENUM_ACTOR	atype,
		i16_area	aarea,
		i32_actordataid	aid,
		ARG &&...	args )

static

actor工厂方法（运行时类型，查分桶表转调编译期create<TACTOR>）

以运行时atype查“构造签名为ARG...”的那张工厂表（须先经cregister登记）。 ARG...由调用实参推导，经decay后须与登记时完全一致（含指针const限定），否则查到的是另一张空表并返回nullptr。

Template Parameters

ARG	构造实参类型包（决定查哪张表）

Returns: 创建的actor智能指针；类型未登记或GUID冲突时返回nullptr

◆ create() [2/2]

template<typename TACTOR, typename ... ARG>

std::shared_ptr< actor_base > ngl::actor_base::create	(	i16_area	aarea,
		i32_actordataid	aid,
		ARG &&...	args )

static

actor工厂方法（编译期类型）

根据编译期模板参数TACTOR创建派生类实例，完成消息分发表初始化、 NSP注册和调度器注册。actor类型枚举通过TACTOR::actor_type()推导。 aarea/aid仅用于生成guid与查重；构造函数参数完全由args...提供。

Template Parameters

TACTOR	actor派生类型（须派生自actor_base且提供静态actor_type()）
ARG	转发给TACTOR构造函数的参数包类型

Returns: 创建的actor智能指针；GUID冲突时返回nullptr

Note: 实现置于actor_manage.h，使所有包含本头的翻译单元可见完整定义，避免模板"只声明未定义"的链接错误（与send_actor等静态模板一致）。

◆ erase_actor_before()

virtual void ngl::actor_base::erase_actor_before ( )

inlinevirtual

Reimplemented in ngl::actor_activity_manage, ngl::actor_chat, ngl::actor_example< TACTOR >, ngl::actor_example< actor_example_guess_number >, ngl::actor_example_manage, ngl::actor_example_match, ngl::actor_family, ngl::actor_friends, ngl::actor_mail, ngl::actor_ranklist, ngl::actor_role, ngl::actor_role_manage, ngl::actor_testlua2, and ngl::actor_testlua.

◆ handle_after()

virtual void ngl::actor_base::handle_after ( handle_pram & )

inlinevirtual

Reimplemented in ngl::actor_activity_manage, ngl::actor_role, and ngl::actor_role_manage.

◆ high_empty()

virtual bool ngl::actor_base::high_empty ( )

pure virtual

Implemented in ngl::actor.

◆ init()

virtual void ngl::actor_base::init ( )

inlinevirtual

◆ kcp_send() [1/2]

template<typename T>

bool ngl::actor_base::kcp_send	(	const std::set< i64_actorid > &	aactorids,
		const T &	adata,
		i16_port	auport = 0 )

staticnodiscard

向一组Actor广播KCP数据（actor_base模板实现）。

Template Parameters

T	数据类型，需支持 net_pack<T>::npack 序列化。

Parameters

aactorids	目标Actor ID集合。
adata	待发送的数据引用。
auport	KCP端口号，默认为0（自动选择）。

Returns: 发送成功返回 true，失败返回 false。

◆ kcp_send() [2/2]

template<typename T>

bool ngl::actor_base::kcp_send	(	i64_actorid	aactorid,
		const T &	adata,
		i16_port	auport = 0 )

staticnodiscard

向单个Actor发送KCP数据（actor_base模板实现）。

Template Parameters

T	数据类型，需支持 net_pack<T>::npack 序列化。

Parameters

aactorid	目标Actor ID。
adata	待发送的数据引用。
auport	KCP端口号，默认为0（自动选择）。

Returns: 发送成功返回 true，失败返回 false。

◆ list_empty()

virtual bool ngl::actor_base::list_empty ( )

pure virtual

Implemented in ngl::actor.

◆ loaddb_finish()

virtual void ngl::actor_base::loaddb_finish	(	pbdb::ENUM_DB	atype,
		enum_dbstat	astat )

inlinevirtual

◆ pending_empty()

virtual bool ngl::actor_base::pending_empty ( )

pure virtual

Implemented in ngl::actor.

◆ push()

virtual bool ngl::actor_base::push ( handle_pram & apram )

pure virtual

Implemented in ngl::actor.

◆ release()

virtual void ngl::actor_base::release ( )

pure virtual

Implemented in ngl::actor.

◆ send_actor()

void ngl::actor_base::send_actor	(	const nguid &	aguid,
		const std::shared_ptr< pack > &	adata )

static

向指定Actor发送消息包

Parameters

aguid	目标Actor的GUID
adata	消息包智能指针

◆ set_activity_stat()

virtual void ngl::actor_base::set_activity_stat ( actor_stat astat )

pure virtual

Implemented in ngl::actor.

◆ set_timer()

int64_t ngl::actor_base::set_timer ( const np_timerparm & aparm )

为当前Actor设置定时器

Parameters

aparm 定时器参数

Returns: 定时器ID

◆ start_broadcast()

void ngl::actor_base::start_broadcast ( )

static

启动全局广播定时器

定期向所有Actor投递np_actor_broadcast消息。

The documentation for this class was generated from the following files:

E:/GitHub/ngl_server/public/cpp/actor/actor_base/core/actor_base.h
E:/GitHub/ngl_server/public/cpp/actor/actor_base/core/actor_base.cpp
E:/GitHub/ngl_server/public/cpp/actor/actor_base/core/actor_manage.h
E:/GitHub/ngl_server/public/cpp/actor/actor_base/core/ndbclient.h
E:/GitHub/ngl_server/public/cpp/actor/generated/auto/pbname_match.cpp
E:/GitHub/ngl_server/public/cpp/net/nnet.h
E:/GitHub/ngl_server/public/cpp/net/udp/kcp/nkcp.h
